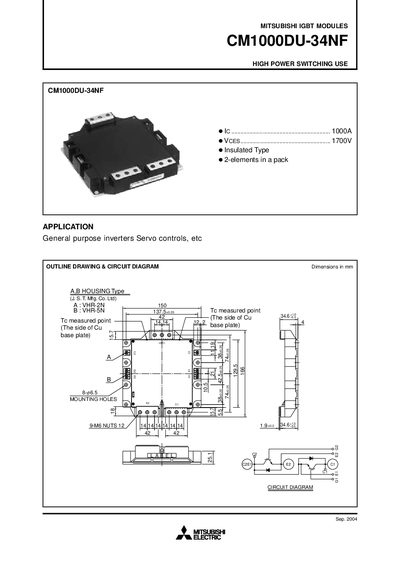

This document introduces the MITSUBISHI IGBT MODULES CM1000DU-34NF released in September 2004. The module is suitable for high power switching applications such as general purpose inverters and servo controls. It has a current rating of 1000A and a voltage rating of 1700V. The module features an insulated design and includes two elements. The document also includes an outline drawing and circuit diagram of the module.
The CM1000DU-34NF is a high‑power IGBT module intended for use in general‑purpose inverters, servo controls and similar applications. It features an insulated type package with two elements in a pack and is supplied by Mitsubishi Electric.
The document lists maximum ratings such as a 1700 V collector‑emitter voltage, 2000 A pulse collector current, and a 8900 W maximum dissipation. It also provides electrical characteristics, performance curves, switching times, thermal data and mechanical dimensions, enabling designers to evaluate the module for high‑power switching tasks.
| Junction temperature range (Tj) | -40 °C to +150 °C |
|---|---|
| Typical weight | 1400 g |
| Turn‑on delay time | 600 ns |
The typical weight is 1400 g.
The junction temperature can be from –40 °C up to +150 °C.
