CM400HX-24A is an IGBT module manufactured by Mitsubishi. It has an IC current of 400A and a VCES voltage of 1200V. It is flat-based, has a copper base plate and is RoHS compliant.

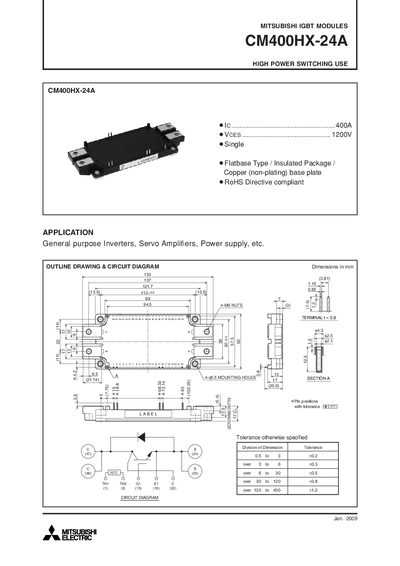

The CM400HX-24A is a high‑power IGBT module intended for use in general‑purpose inverters, servo amplifiers, and power supplies. The document lists its physical dimensions, outline drawing, and typical mounting details.
Key electrical ratings such as collector‑emitter voltage, gate‑emitter voltage, maximum collector current, and thermal characteristics are presented together with performance curves, switching loss data, and gate charge information to aid designers in selecting the device for half‑bridge applications.
| Junction temperature range (Tj) | -40 ~ +150 °C |
|---|---|
| Typical weight | 330 g |
The typical weight is 330 g.
The junction temperature can operate from –40 °C to +150 °C.
