CM150DU-24NFH is an IGBT module produced by Mitsubishi Electric. It has a rated current of 150A and a rated voltage of 1200V. It is suitable for high frequency switching applications such as gradient amplifiers, induction heating and power supplies.
The CM150DU-24NFH is a high‑power insulated IGBT module designed for high‑frequency switching (80 kHz to 60 kHz) in applications such as gradient amplifiers, induction heating and power supplies. The module contains two IGBT elements in a single package and is rated for operation up to 150 A continuous collector current.

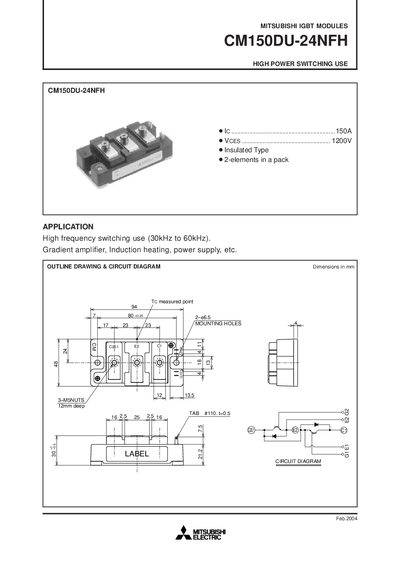

The datasheet lists maximum voltage and current ratings, thermal resistance values, capacitances, gate charge, and detailed performance curves. It also includes normalized transient switching times and thermal impedance data to aid designers in evaluating the module for their circuits.
| Continuous collector current (Ic) | 150 A |
|---|---|
| Junction temperature range | 40 °C ~ +150 °C |
| Weight | 310 g |
| Input capacitance (Cies) | 24 nF |
| Turn‑on delay time | 150 ns |
The module is rated for a continuous collector current of 150 A.
The typical weight of the module is 310 g.
