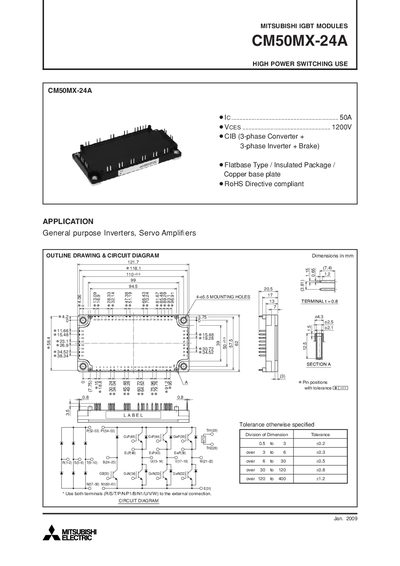

This document describes the features and characteristics of the MITSUBISHI IGBT MODULES CM50MX-24A high power switching module released in January 2009. The module is suitable for general purpose inverters and servo amplifiers.
The Mitsubishi CM50MX-24A IGBT module is designed for high‑power switching applications such as three‑phase converters, inverters and brake circuits. The document provides absolute maximum ratings, electrical characteristics, thermal data, and typical performance curves for the inverter, brake, and converter sections of the module.
Key information includes collector‑emitter voltage, gate‑emitter voltage, current limits, dissipation ratings, isolation voltage, and detailed switching characteristics. The datasheet also contains mechanical dimensions, mounting instructions, and thermal resistance values for proper integration into power electronics systems.
