CM300DX-24A is a 300A, 1200V dual IGBT module with a flat base package and a copper base plate. It is RoHS compliant.

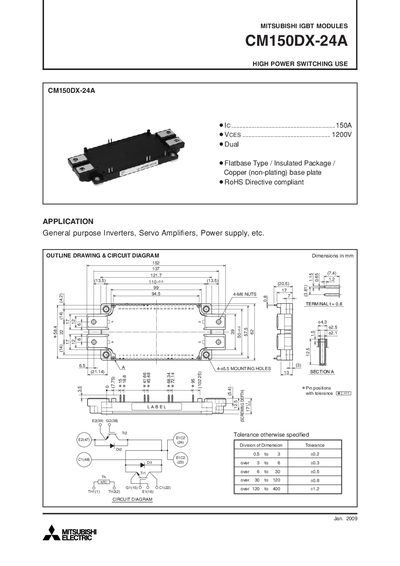

The CM150DX-24A is a high‑power IGBT module designed for use in inverters, servo amplifiers, power supplies and similar applications. It features a flat‑base insulated package, RoHS compliance, and a typical weight of 330 g.
The datasheet lists key specifications such as a 1200 V collector‑emitter voltage, 150 A collector current, 960 W maximum dissipation, and a junction temperature range of –40 °C to +150 °C. Performance curves and electrical characteristics are provided for design and verification purposes.
| Junction temperature (Tj) | -40 °C ~ +150 °C |
|---|---|
| Typical weight | 330 g |
| Thermal resistance (Rth(j‑c)) | 0.13 K/W |
The typical weight of the module is 330 g.
