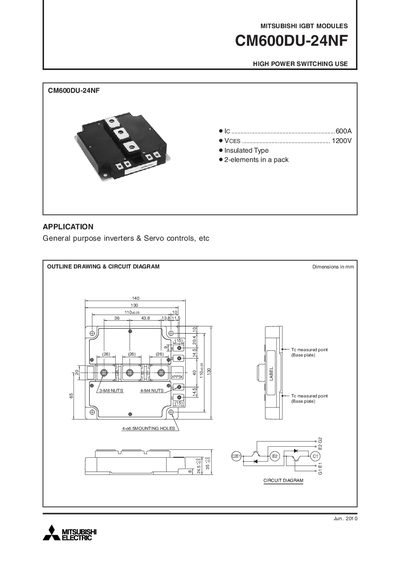

This document is about MITSUBISHI IGBT MODULES CM600DU-24NF for high power switching use. The module features VCES of 1200V and IC of 600A, suitable for general purpose inverters and servo controls.
The CM600DU-24NF is a high‑power switching IGBT module designed for general‑purpose inverters, servo controls and similar applications. It features an insulated type package with two elements in a pack and includes detailed outline drawings and circuit diagrams.
Key specifications include a collector‑emitter voltage rating of 1200 V, a maximum collector current of 800 A, total power dissipation of 2080 W, and a typical weight of 1200 g. Thermal and electrical characteristics such as isolation voltage, capacitances, gate charge and switching times are also listed, along with recommended mounting torque values.
| Pulse current (IE) | 600 A |
|---|---|
| Junction temperature range (Tj) | -40 °C ~ +150 °C |
| Weight | 1200 g |
| Input capacitance (Cies) | 440 nF |
| Turn‑on delay time (td(on)) | 800 ns |
The typical weight is 1200 g.
