The CM100DU-24NFH is a high power switching IGBT module from Mitsubishi Electric. It has a rated collector current of 100A and a rated collector-emitter voltage of 1200V. It is mainly used in high frequency switching power supplies and power electronic devices.

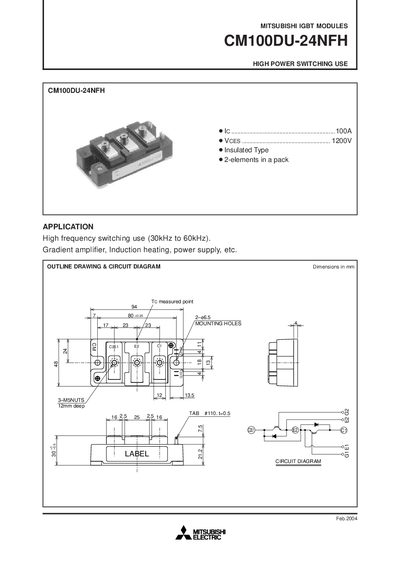

The CM100DU-24NFH is a high‑power insulated IGBT module designed for high‑frequency switching applications such as gradient amplifiers, induction heating and power supplies. It features a 2‑element pack with a collector‑emitter voltage rating of 1200 V and a gate‑emitter rating of +20 V.
The datasheet provides maximum ratings, electrical characteristics, thermal impedance, switching time curves and gate‑charge data. Key parameters include a continuous collector current of 100 A, pulse current of 200 A, typical power dissipation of 560 W (730 W max), and a junction temperature range up to +150 °C.
| Collector‑emitter voltage (VCES) | 1200 V |
|---|---|
| Gate‑emitter voltage (VGES) | +20 V |
| Continuous collector current (Ic) | 100 A |
| Pulse collector current (TOM) | 200 A |
| Typical power dissipation (Pc) | 560 W |
| Maximum power dissipation (Pc’) | 730 W |
| Junction temperature range (Tj) | -40 °C to +150 °C |
| Storage temperature (Tstg) | -40 °C to +125 °C |
| Isolation voltage (Viso) | 2500 V |
| Typical weight | 310 g |
The module can handle a continuous collector current of 100 A.
The pulse collector current rating is 200 A.
The typical weight is 310 g.
The isolation voltage between the main terminal and base plate is rated at 2500 V.
