CM1200HA-50H is a Mitsubishi Electric high voltage insulated gate bipolar transistor module (HVIGBT) with a maximum collector current of 1200A and a maximum collector-emitter voltage of 2500V. It is used in inverters, converters, DC choppers, induction heating, DC/DC converters, etc.
The CM1200HA-50H is a high‑power insulated‑gate bipolar transistor (IGBT) module designed for use in inverters, converters, DC choppers, induction heating and DC‑to‑DC converters. It features an insulated type construction with a single element per pack and provides high voltage and current handling capabilities.

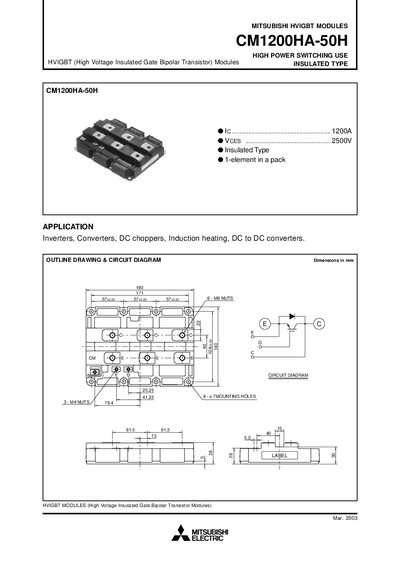

The datasheet includes maximum ratings, electrical characteristics, performance curves, switching energy and timing data, as well as thermal impedance and gate charge information, allowing engineers to evaluate the module for high‑power switching applications.
| Continuous collector current (Ic) | 1200 A |
|---|---|
| Junction temperature range (Tj) | -40 °C to +150 °C |
| Storage temperature range | -40 °C to 125 °C |
| Mass | 2.2 kg |
| Input capacitance (Cies) | 120 nF |
The module can handle a continuous collector current of 1200 A.
The typical mass of the module is 2.2 kg.
