The CM1800HC-34N is a high voltage insulated gate bipolar transistor module produced by Mitsubishi Electric. It has a maximum voltage of 1700V, a maximum current of 1800A, and a rated power of 360W. The operating temperature range is -40°C to +125°C. The package form is TO-247-4L, and there are 3 M8 bolt holes and 3 M4 bolt holes for mounting.

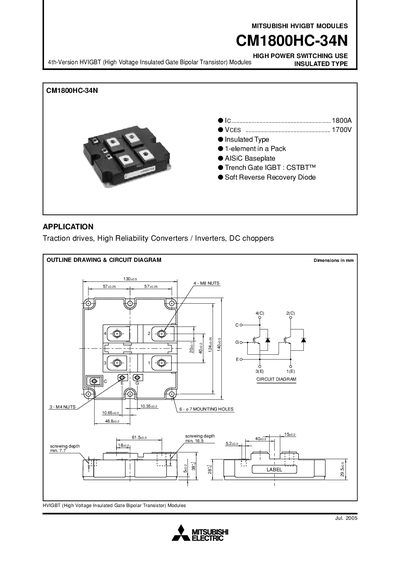

The Mitsubishi CM1800HC-34N is a high‑power, insulated‑type HVIGBT module designed for traction drives, high‑reliability converters/inverters, and DC choppers. It features a 4th‑generation CSTBT™ IGBT, soft reverse‑recovery diode, and an AISiC baseplate.
The document provides maximum ratings, electrical, thermal, mechanical, and switching characteristics, as well as performance curves and capacitance data for designers and engineers.
| Collector‑Emitter Voltage (VCE) | 1700 V |
|---|---|
| Gate‑Emitter Voltage (VGE) | +20 V |
| Collector Current (Ic) | 1800 A |
| Maximum Power Dissipation (Pc) | 10000 W |
| Junction Temperature (Tj) Max | +150 °C |
| Isolation Voltage | 4000 V rms |
| Thermal Resistance (junction‑to‑case) | 12.5 K/kW |
| Mass | 0.8 kg |
| Main Terminal Screw Size | M8 (7.0‑20.0 mm) |
The module is rated for a collector‑emitter voltage of 1700 V.
The continuous collector current rating is 1800 A.
The module can dissipate up to 10 kW of power.
Junction‑to‑case thermal resistance is 12.5 K/kW, and junction‑to‑gate‑diode resistance is 28.0 K/kW.
