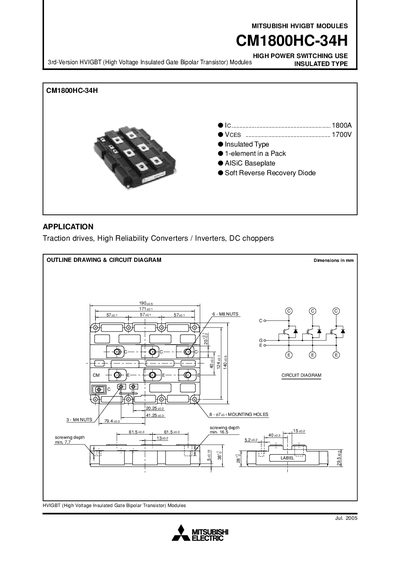

CM1800HC-34H is a high voltage insulated gate bipolar transistor (HVIGBT) module manufactured by Mitsubishi Electric. It has a maximum collector-emitter voltage of 1700V and a maximum collector current of 1800A. The module is integrated with one element in a pack, features a soft reverse recovery diode, an AISiC baseplate, and 3 M4 nuts and 8 φ7 mounting holes.
The CM1800HC-34H is a high‑power insulated‑gate bipolar transistor (HVIGBT) module designed for traction drives, converters, inverters and DC choppers. It features an insulated type construction with a single element in a pack and a soft‑reverse‑recovery diode.
The document provides detailed electrical, thermal, mechanical, and switching characteristics, including maximum ratings, characteristic curves, and typical performance parameters for designers and engineers working with high‑voltage power electronics.
| Collector‑emitter voltage (VCES) | 1700 V |
|---|---|
| Pulse collector current (ICM) | 3600 A |
| Junction temperature range (Tj) | -40 °C to +150 °C |
| Mass | 15 kg |
The module is rated for a maximum collector‑emitter voltage of 1700 V.
