CM1600HC-34H is a high power switching use insulated type G HVIGBT module with rated voltage of 1700V and rated current of 1600A. It adopts 1 piece of insulated G type HVIGBT and 1 piece of soft reverse recovery diode, and is suitable for applications such as traction drive, high reliability converters/inverters, DC choppers.

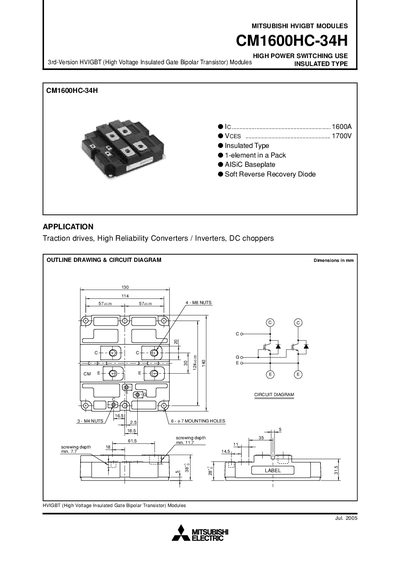

The CM1600HC-34H is a 3rd‑generation high‑voltage IGBT module with an insulated type construction, designed for high‑power switching applications such as traction drives, high‑reliability converters/inverters, and DC choppers. It features a single‑element pack, ASIC baseplate, and soft reverse‑recovery diode.
Key electrical ratings include a collector‑emitter voltage of 1700 V, gate‑emitter voltage of +20 V, continuous collector current of 1600 A, pulse current of 3200 A, and a maximum power dissipation of 12 500 W. Thermal resistance from junction to case is 10 K/kW, and the module weighs about 1 kg.
| Collector‑emitter voltage (VCES) | 1700 V |
|---|---|
| Mass | 1.0 kg |
The module is rated for a maximum collector‑emitter voltage of 1700 V.
It is used in traction drives, high‑reliability converters/inverters, and DC choppers.
Storage temperature is –40 °C to +125 °C, and top operating temperature is –40 °C to +125 °C.
