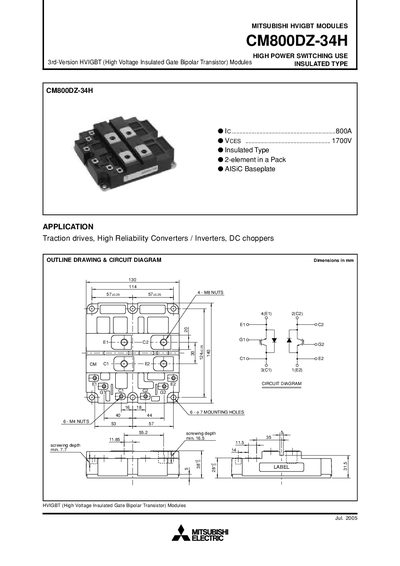

The CM800DZ-34H is a Mitsubishi Electric high power switching use insulated type IGBT module. The rated collector-emitter voltage is 1700V and the collector current is 800A. The module uses an AISiC baseplate and measures 114×31.5×57mm.
The CM800DZ-34H is a 3rd‑generation high‑voltage insulated gate bipolar transistor (HVIGBT) module designed for high‑power switching applications such as traction drives, converters, inverters and DC choppers. It features an insulated type construction with a two‑element pack and an AISiC baseplate.
The document provides detailed electrical, thermal and mechanical characteristics, maximum ratings, performance curves, and typical switching energy data, enabling engineers to assess suitability for high‑current, high‑voltage power systems.
| Pulse collector current (ICM) max | 1600 A |
|---|---|
| Junction temperature range | -40 °C to +150 °C |
| Storage temperature range | -40 °C to +125 °C |
| Mass | 1.0 kg |
