CM400DY-50H is a high voltage insulated gate bipolar transistor (HVIGBT) module produced by Mitsubishi. It is used in inverters, converters, DC choppers, induction heating, DC to DC converters and other devices.

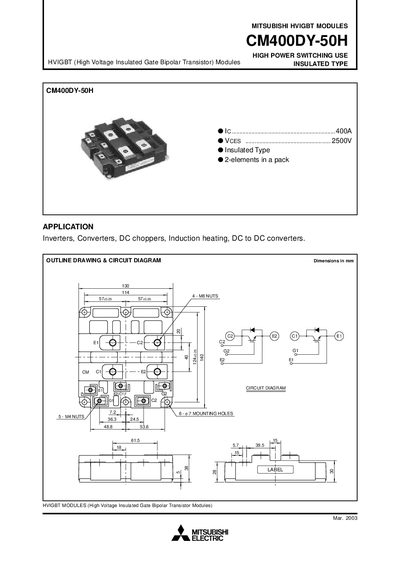

The CM400DY-50H is a high‑voltage insulated gate bipolar transistor (HVIGBT) module designed for high‑power switching uses such as inverters, converters, DC choppers, and induction heating. It is an insulated type with two elements in a pack and includes detailed electrical and thermal specifications.
Key specifications include a collector‑emitter voltage rating of 2500 V, continuous collector current of 400 A (800 A pulse), maximum dissipation of 3400 W, junction temperature range from –40 °C to +150 °C, and an isolation voltage of 6000 V rms. Physical dimensions are 130 mm × 14 mm and the module weighs approximately 1.5 kg.
| Continuous collector current (Ic) | 400 A |
|---|---|
| Junction temperature range (Tj) | -40 °C ~ +150 °C |
| Mass | 1.5 kg |
| Mounting torque (M8 screw) | 6.67 ~ 13.00 N·m |
The module can carry a continuous collector current of 400 A, with a pulse rating of 800 A.
The junction temperature can operate from –40 °C up to +150 °C.
The module has a typical mass of about 1.5 kg.
