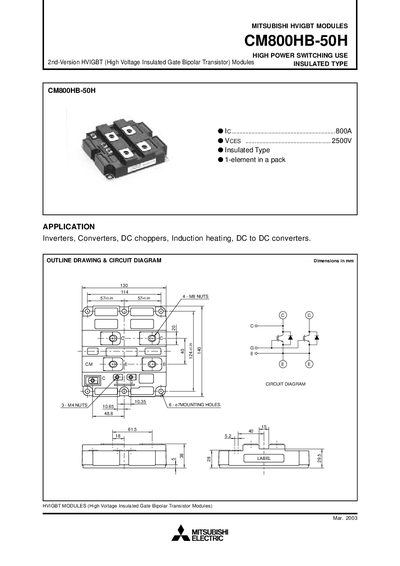

CM800HB-50H is a high voltage insulated gate bipolar transistor (HVIGBT) module produced by Mitsubishi Electric. It has a rated current of 800A and a rated blocking voltage of 2500V. It is suitable for applications such as inverters, converters, DC choppers, induction heating, and DC-DC converters.
The CM800HB-50H is a high‑power, insulated‑type HVIGBT module from Mitsubishi Electric, intended for use in inverters, converters, DC choppers, induction heating and DC‑to‑DC converters. It provides a single‑element pack with robust electrical and thermal performance.
The document lists maximum ratings such as 2500 V collector‑emitter voltage, 800 A continuous collector current (1600 A pulse), 10 400 W dissipation, and isolation voltage of 6000 V. It also includes typical physical data (38 mm × 29.5 mm, 1.5 kg mass) and thermal characteristics like junction temperature range –40 °C to +150 °C.
| Continuous collector current (Ic) | 800 A |
|---|---|
| Pulse collector current | 1600 A |
| Typical mass | 1.5 kg |
| Dimensions (L × W) | 38 mm × 29.5 mm |
The module is rated for a continuous collector current of 800 A.
It can handle a pulse collector current of up to 1600 A.
The module weighs about 1.5 kg.
