CM1200HA-66H is a HVIGBT module produced by Mitsubishi Electric, with a maximum collector current of 1200A and a maximum collector-emitter voltage of 3300V.
The CM1200HA-66H is a high‑power HVIGBT module designed for use in inverters, converters, DC choppers, induction heating and DC‑to‑DC converters. It is an insulated‑type, single‑element package with a mass of about 22 kg.

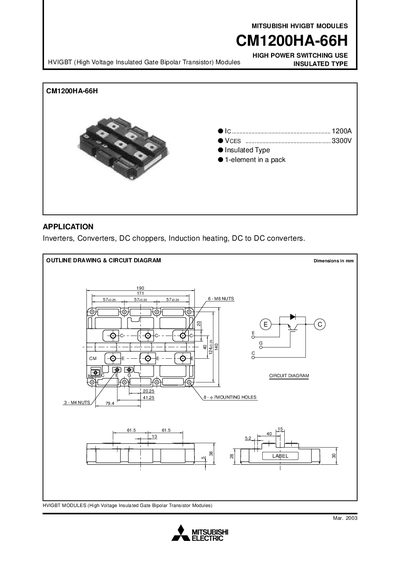

The document provides maximum ratings, electrical characteristics, switching performance curves, gate charge data, reverse‑recovery behavior and transient thermal impedance for the module, along with outline drawings and mounting information.
| Continuous collector current (Ic) | 1200 A |
|---|---|
| Pulse collector current | 2400 A |
| Junction temperature range (Tj) | -40 °C to +150 °C |
| Storage temperature range (Tstg) | -40 °C to +125 °C |
| Mass | 22 kg (typical) |
The junction temperature can operate from –40 °C up to +150 °C.
The typical mass of the CM1200HA‑66H is about 22 kg.
