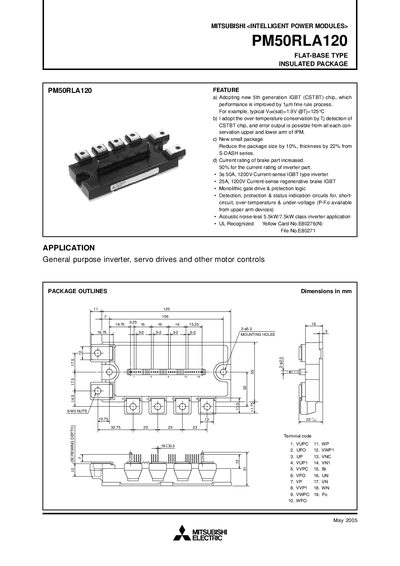

This document describes the features of the May 2005 MITSUBISHI
This document details the technical specifications of the Mitsubishi Electric PM50RLA120 Intelligent Power Module, including electrical, thermal, and mechanical ratings. It covers maximum voltage and current limits, power dissipation, junction temperature range, and recommended mounting and wiring practices.
The manual also includes application notes for general purpose inverters, servo drives, and motor controls, as well as testing precautions, performance curves, and transient thermal characteristics to aid designers in safe and reliable integration.
| Continuous Collector Current (Ic) rating (inverter part) | 50 A |
|---|---|
| Peak Collector Current (Icp) rating (inverter part) | 100 A |
| Power Dissipation (Pc) rating (inverter part) | 480 W |
| Junction Temperature range | -20 ~ +150 °C |
| Mounting torque (main terminal screw, M5) | 3.0 Nm (typical) |
| Weight | 380 g |
| Control supply voltage (VD) range | 13.5 ~ 16.5 V |
The control supply voltage should be between 13.5 V and 16.5 V.
Apply a typical torque of 3.0 Nm to the M5 main terminal screw.
