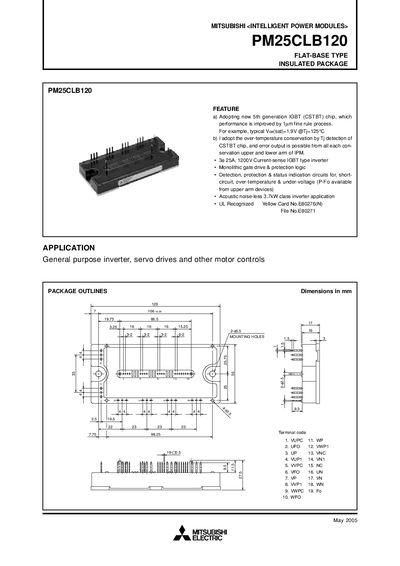

This document describes the features and characteristics of the May 2005 Mitsubishi Intelligent Power Modules (IPM) PM25CLB120, including the adoption of a new 5th generation IGBT (CSTBT) chip with improved performance, suitable for general-purpose inverters, servo drives, and other motor control applications.
The Mitsubishi PM25CLB120 Intelligent Power Module is a flat‑base, insulated IGBT‑based inverter module rated for 30 kW, 25 A continuous current and 1200 V collector‑emitter voltage. It features monolithic gate‑drive and protection logic, over‑temperature detection, and UL‑recognized safety compliance.
The manual provides detailed electrical and mechanical ratings, recommended operating conditions, wiring diagrams, performance curves, and testing precautions to ensure reliable and safe integration into general‑purpose inverter, servo‑drive and motor‑control applications.
| Junction Temperature Range | -20 °C ~ +150 °C |
|---|---|
| Weight | 340 g |
