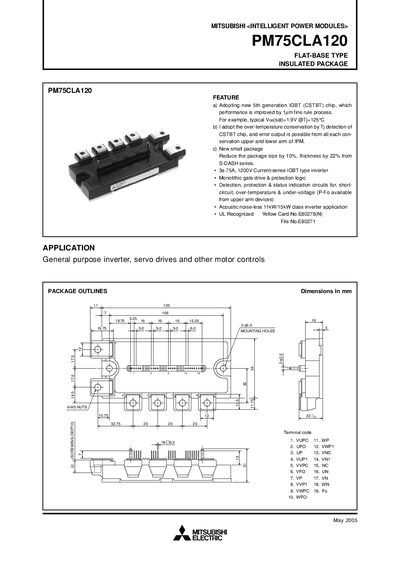

This is a document about the May 2005 Mitsubishi Intelligent Power Module PM75CLA120. The module features a new 5th generation IGBT chip with improved performance and temperature protection. It is suitable for general purpose inverters, servo drives, and other motor control applications.
The PM75CLA120 is a flat‑base, insulated Intelligent Power Module featuring a 5th‑generation IGBT (CSTBT) chip with improved performance and a compact package that is 10 % smaller than the previous S‑DASH series. It integrates monolithic gate‑drive and protection logic, offering short‑circuit, over‑temperature, and under‑voltage detection with status indication.
The module is rated for 75 A continuous collector current, 150 A peak, and 595 W power dissipation, with a junction temperature range of –20 °C to +150 °C. It is intended for general‑purpose inverters, servo drives, and motor control applications, and includes detailed mechanical dimensions, mounting torque specifications, and recommended wiring practices for safe and reliable operation.
| Typical VCE(sat) at 125 °C | 1.9 V |
|---|---|
| Continuous Collector Current | 75 A |
| Peak Collector Current | 150 A |
| Collector Power Dissipation | 595 W |
| Junction Temperature Range | -20 °C to +150 °C |
| Mounting Torque (M5 screw) | 2.5 – 3.5 Nm |
| Weight | 380 g |
The module can handle a continuous collector current of 75 A.
Typical VCE(sat) is 1.9 V at 125 °C.
Use a torque of 2.5 – 3.5 Nm for M5 screws.
