PM150RLA060 is a three-phase 150A, 600V intelligent power module that adopts 5th generation IGBT chip and small package, with high performance, high reliability and low noise

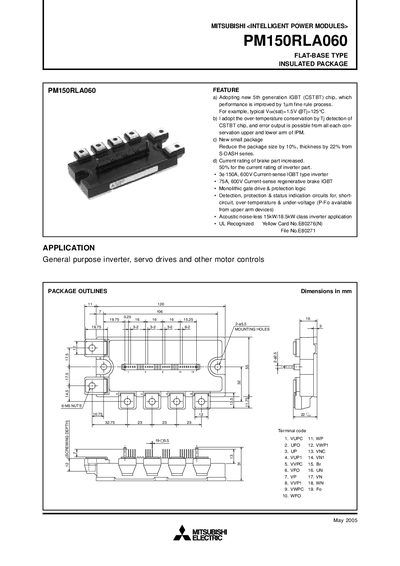

The Mitsubishi PM150RLA060 is a flat‑base, insulated intelligent power module that incorporates a 5th‑generation IGBT (CSTBT) chip. It offers improved performance, reduced package size, and higher current ratings for both inverter and regenerative brake functions.
The manual provides detailed electrical and mechanical ratings, internal block diagrams, recommended mounting and wiring practices, and performance curves to help designers integrate the module safely into inverter, servo drive and other motor‑control applications.
