PM50RLB060 is a 3φ 50A, 600V intelligent power module that uses the 5th generation CSTBT chip with integrated gate drive and protection logic and has short-circuit, over-temperature and under-voltage protection.

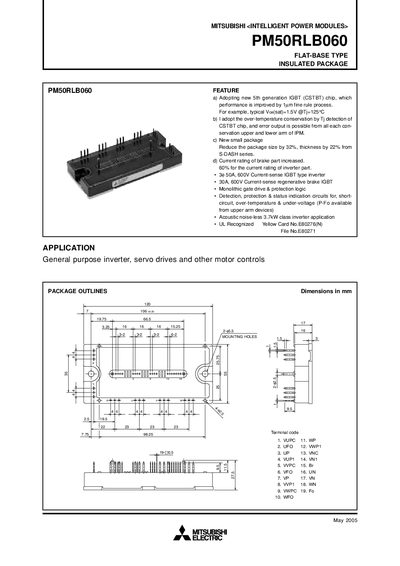

The Mitsubishi PM50RLB060 is a flat‑base insulated intelligent power module designed for general‑purpose inverter, servo drive and motor control applications. The manual provides detailed information on features, electrical and mechanical ratings, wiring diagrams, testing precautions and performance curves.
Key sections include package outlines, internal function block diagrams, maximum ratings, thermal impedance data, and recommended installation practices such as mounting torque and noise‑reduction measures.
| Collector‑Emitter Voltage (Inverter Part) | 600 V |
|---|---|
| Continuous Collector Current (Inverter Part) | 50 A |
| Operating Temperature Range | -20 °C to +150 °C |
The inverter part can handle a continuous collector current of 50 A.
The module is rated for operation from –20 °C up to +150 °C.
