PM200RLA060 is a module produced by MITSUBISHI. It adopts the fifth generation IGBT chip, which has improved performance. The rated current is 3φ200A, 600V. It has short circuit protection, over temperature protection, under voltage protection and other functions. It is used in general purpose inverters, servo drives and other motor control fields.

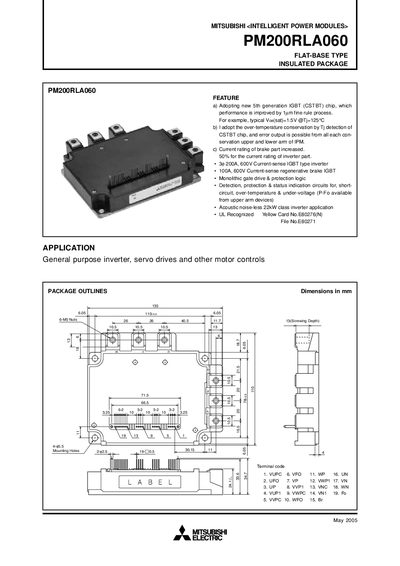

The PM200RLA060 is a flat‑base, insulated Intelligent Power Module featuring a 5th‑generation CSTBT IGBT chip, over‑temperature protection, and increased current ratings for both inverter and brake sections. It is intended for general‑purpose inverters, servo drives, and other motor control applications.
The document lists detailed electrical and mechanical ratings, thermal resistance values, performance curves, and testing precautions. It also includes recommended mounting torque, weight, and wiring guidelines for safe and reliable operation.
| Collector Current (Inverter Part) | 200 A |
|---|---|
| Power Dissipation (Inverter Part) | 781 W |
| Junction Temperature Range | -20 ~ +150 °C |
| Collector Current (Brake Part) | 100 A |
| Power Dissipation (Brake Part) | 446 W |
| Supply Voltage (Protected) | 13.5 ~ 16.5 V |
| Weight | 800 g |
The module can operate from –20 °C up to +150 °C.
The brake part is rated for a continuous collector current of 100 A.
