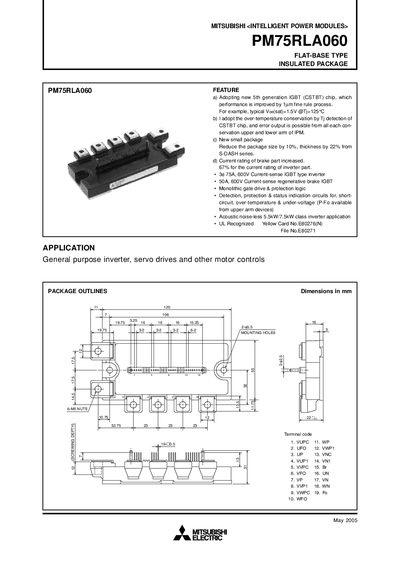

The PM75RLA060 is a three-phase 75A, 600V IGBT type inverter with an integrated gate driver and protection logic. It has short-circuit, over-temperature, and under-voltage protection functions and is suitable for general-purpose inverters, servo drives, and other motor control applications.
The PM75RLA060 is a flat‑base, insulated intelligent power module designed for general‑purpose inverter, servo drive and other motor control applications. It incorporates a 5th‑generation IGBT (CSTBT) chip, offering improved performance and a compact package size.
The document lists electrical and thermal ratings, mechanical dimensions, recommended mounting conditions, and testing precautions. Performance curves and characteristic graphs illustrate collector‑emitter saturation, switching times, and transient thermal impedance for both inverter and brake sections.
| Collector Current (Inverter Part) | 75 A |
|---|---|
| Peak Collector Current (Inverter Part) | 150 A |
| Junction Temperature Range | -20 °C to +150 °C |
| Collector Current (Brake Part) | 50 A |
| Peak Collector Current (Brake Part) | 100 A |
| Weight | 380 g |
| Supply Voltage (Voc) | < 400 V |
The inverter part can handle a continuous collector current of 75 A.
