PM150CLA120 is a three-phase 150A, 1200V intelligent power module that uses 5th generation IGBT chips for improved performance. It has short-circuit, over-temperature, under-voltage detection, protection and status indication functions, and is suitable for general inverters, servo drives and other motor control fields.

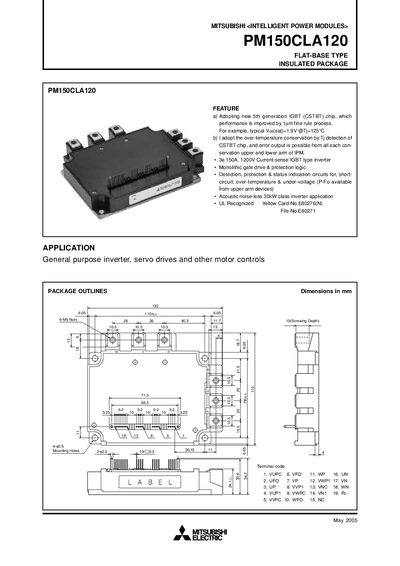

The PM150CLA120 is a flat‑base, insulated intelligent power module featuring a 5th‑generation IGBT (CSTBT) chip, 150 A continuous collector current and 1200 V rating. It provides monolithic gate drive, protection logic and status indication for short‑circuit, over‑temperature and under‑voltage conditions, suitable for general‑purpose inverter and servo drive applications.
The document lists maximum electrical and mechanical ratings, recommended operating conditions, testing precautions and performance curves. It also includes wiring diagrams, pin assignments and mechanical dimensions for proper integration into inverter systems.
| Continuous Collector Current (Ic) | 150 A |
|---|---|
| Peak Collector Current (Ic, peak) | 300 A |
| Junction Temperature Range | -20 °C to +150 °C |
| Weight | 800 g |
| Mounting Torque (M5 screw) | 2.5‑3.5 N·m |
| Supply Voltage (VD) | 13.5 V ~ 16.5 V |
It can handle a continuous collector current of 150 A at 25 °C.
The recommended torque for the M5 main terminal screw is between 2.5 and 3.5 N·m.
The control supply voltage (VD) should be between 13.5 V and 16.5 V.
