PM200CLA120 is a 3φ 200A, 1200V intelligent power module produced by MITSUBISHI. It uses the fifth generation IGBT chip and has excellent performance.
The PM200CLA120 is a flat‑base, insulated Intelligent Power Module designed for general‑purpose inverter, servo drive and motor control applications. It incorporates a 5th‑generation IGBT (CSTBT) chip with improved performance and built‑in over‑temperature, short‑circuit and under‑voltage protection.

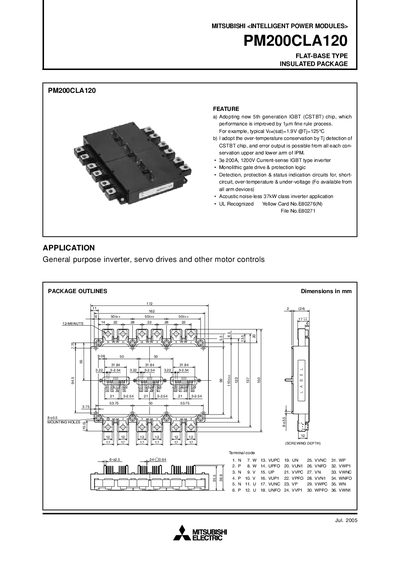

The manual details electrical and mechanical ratings, recommended operating conditions, testing procedures, and design recommendations such as PCB layout, decoupling, and noise filtering. It also includes performance curves, thermal impedance data, and wiring diagrams to aid engineers in integrating the module safely and efficiently.
| Collector‑Emitter Saturation Voltage | Vce(sat)=1.9V @Tj=125°C |
|---|---|
| Continuous Collector Current | 200 A |
| Peak Collector Current | 400 A |
| Maximum Power Dissipation | 1041 W |
| Junction Temperature Range | -20 °C to +150 °C |
The module is rated for a continuous collector current of 200 A.
It includes over‑temperature detection, short‑circuit protection, and under‑voltage protection for each arm of the IPM.
