PM300CLA120 is a three-phase 300A, 1200V intelligent power module that uses CSTBT chips with excellent performance and adopts Tj detection for overtemperature protection. All upper and lower arms can output error signals. It is suitable for 45kW/55kW class inverter applications

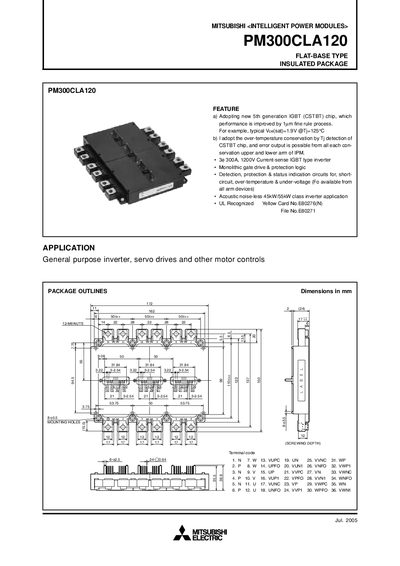

The PM300CLA120 is a flat‑base, insulated intelligent power module featuring a 5th‑generation IGBT (CSTBT) chip, over‑temperature detection, and comprehensive protection circuits. It is intended for general‑purpose inverter, servo drive and motor control applications.
The document provides detailed electrical and mechanical ratings, recommended mounting and wiring practices, testing precautions, and performance curves to ensure safe and reliable operation of the module.
| Junction Temperature Range | -20 °C ~ +150 °C |
|---|---|
| Weight | 1250 g |
It includes detection, protection and status indication for short‑circuit, over‑temperature, and under‑voltage, with fault output capability.
The supply voltage across the P‑N terminals should be less than 800 V.
