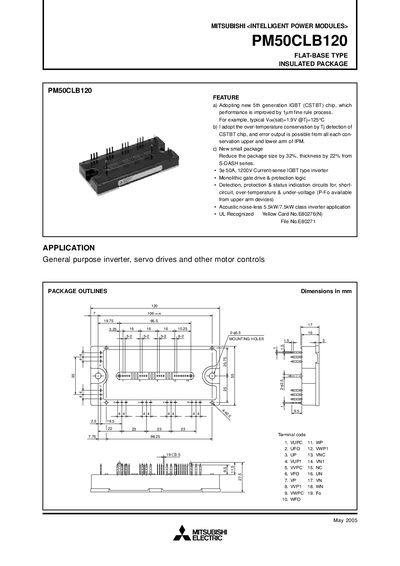

The PM50CLB120 is a power module produced by MITSUBISHI, which uses 5th generation IGBT chip and has improved performance.
The PM50CLB120 is a flat‑base, insulated intelligent power module featuring a 5th‑generation IGBT (CSTBT) chip, reduced package size, and integrated gate‑drive and protection logic. It is designed for general‑purpose inverter, servo drive and motor control applications, offering up to 5.5 kW/7.5 kW class inverter performance.
The document provides detailed electrical and mechanical ratings, recommended operating conditions, protection functions, and testing precautions, along with performance curves and characteristic graphs for designers and engineers.
| Junction Temperature Range | -20 °C to +150 °C |
|---|---|
| Weight | 340 g |
It includes detection, protection and status indication for short‑circuit, over‑temperature and under‑voltage, with fault‑output capability.
