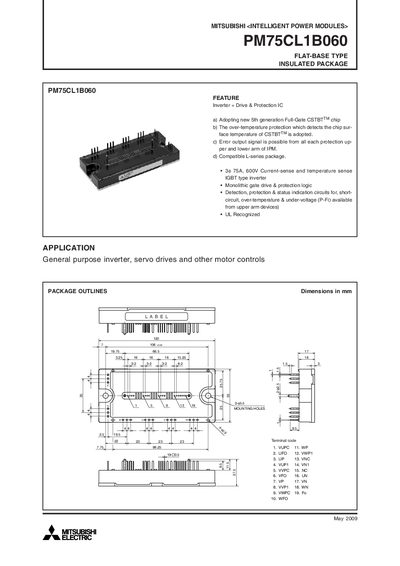

PM75CL1B060 is a kind of intelligent power module from MITSUBISHI. It adopts the fifth-generation full-gate CSTBTTM chip and has over-temperature protection function. It is compatible with L-series package.
The PM75CL1B060 is a flat‑base, insulated intelligent power module that integrates an inverter, drive, and protection IC. It features a 5th‑generation full‑gate CSTBT™ chip, over‑temperature protection, and error output signals for both upper and lower arms.
The document provides detailed electrical and mechanical ratings, thermal characteristics, recommended operating conditions, and test procedures for safe and reliable use in general‑purpose inverter, servo drive, and motor control applications.
| Junction Temperature Range | -20 °C to +150 °C |
|---|---|
| Supply Voltage (VD) | 13.5 V to 16.5 V |
| Weight | 340 g |
| Storage Temperature Range | -40 °C to +125 °C |
It includes over‑temperature protection, short‑circuit protection, and under‑voltage protection for both the upper and lower arms, with error output signals available.
The recommended supply voltage is between 13.5 V and 16.5 V.
