PM100CL1A060 is a three-phase 100A, 600V intelligent power module, adopting 5th generation full-gate CSTBTTM chip, with chip surface temperature detection over-temperature protection function, can output error signal from upper arm and lower arm of each protection circuit, compatible with L series package.

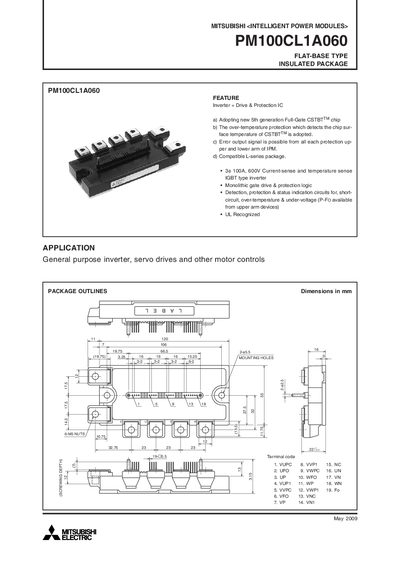

The PM100CL1A060 is a flat‑base, insulated Intelligent Power Module that integrates an inverter, drive, and protection IC. It features a 5th‑generation Full‑Gate CSTBT chip, over‑temperature protection, and error output signals for both upper and lower arms. The module is intended for general‑purpose inverter, servo drive, and motor control applications.
The document lists electrical and mechanical ratings, recommended operating conditions, testing precautions, and performance curves. It includes detailed specifications such as voltage, current, power dissipation, thermal resistance, and mounting dimensions, as well as guidance on PCB layout and input signal handling for reliable operation.
| Junction Temperature (Tj) range | -20 °C to +150 °C |
|---|---|
| Mounting screw size | M5 |
| Weight | 380 g |
A supply voltage of 400 V should be applied across the P‑N terminals.
