This document describes the features and characteristics of the MITSUBISHI

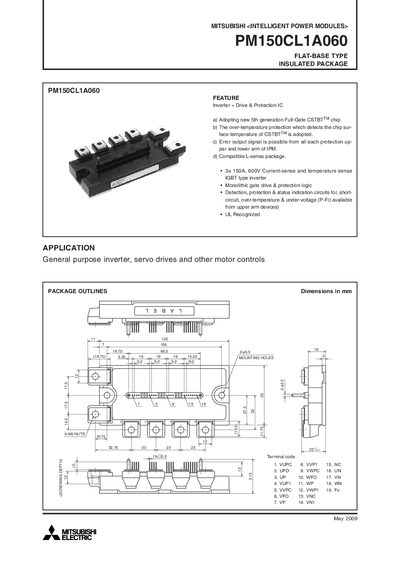

The Mitsubishi Electric PM150CL1A060 Intelligent Power Module is a flat‑base, insulated package that integrates an inverter, drive and protection IC. It features a 5th‑generation Full‑Gate CSTBT™ chip, over‑temperature protection, and error output signals for both upper and lower arms.
The manual provides detailed electrical ratings, mechanical dimensions, recommended operating conditions, testing precautions, and performance curves. It also includes wiring diagrams, thermal resistance data, and guidance for PCB layout and component selection to ensure reliable operation in motor control and inverter applications.
| Junction Temperature Range (Tj) | -20 ~ +150 °C |
|---|---|
| Supply Voltage (VCC) | 400 V |
| Mounting Screw Size | M5 |
| Weight | 380 g |
A supply voltage of 400 V should be applied across the P‑N terminals.
Use M5 screws with a torque range of 2.5 – 3.5 Nm for the mounting parts.
The module can operate from –20 °C up to +150 °C junction temperature.
