The PM150RLA120 is a three-phase 150A, 1200V current-sense IGBT type inverter, a 75A, 1200V current-sense regenerative brake IGBT, a monolithic gate drive and protection logic, short-circuit, over-temperature and under-voltage detection, protection and status indication circuits (P-Fo available from upper arm devices), for acoustic noise-less 30kW class inverter applications.

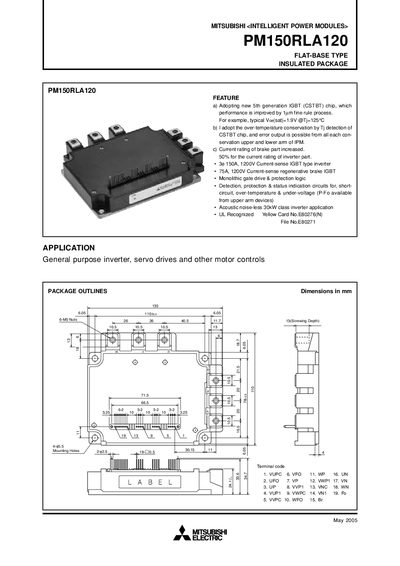

This document describes the Mitsubishi PM150RLA120 flat‑base, insulated Intelligent Power Module. It lists features such as a 5th‑generation IGBT chip, over‑temperature protection, and increased current ratings for both inverter and regenerative brake sections.
The datasheet includes maximum ratings, electrical and thermal characteristics, mechanical dimensions, recommended operating conditions, testing precautions, and performance curves for both inverter and brake parts. It is intended for designers of general‑purpose inverters, servo drives, and other motor‑control applications.
| Continuous Collector Current (Inverter) | 150 A |
|---|---|
| Peak Collector Current (Inverter) | 300 A |
| Continuous Collector Current (Brake) | 75 A |
| Power Dissipation (Inverter) | 1041 W |
| Power Dissipation (Brake) | 595 W |
| Junction Temperature Range | -20 °C to +150 °C |
| Supply Voltage (VD) | 13.5 V to 16.5 V |
| Mounting Torque (Main Terminal Screw) | 2.5 N·m to 3.5 N·m |
| Weight | 800 g |
The inverter part can handle a continuous collector current of 150 A (peak 300 A).
The recommended mounting torque is between 2.5 N·m and 3.5 N·m.
The module is rated for junction temperatures from –20 °C up to +150 °C.
The module requires a supply voltage (VD) between 13.5 V and 16.5 V.
