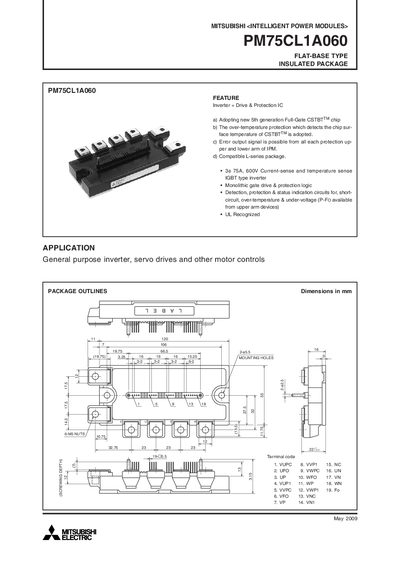

This document describes the features and characteristics of the MITSUBISHI INTELLIGENT POWER MODULES PM75CL1A060 model produced in May 2009. The product adopts the new fifth-generation Full-Gate CSTBTTM chip and has over-temperature protection and error output signal capabilities. It is suitable for general-purpose inverters, servo drives, and other motor control applications.
The PM75CL1A060 is a flat‑base, insulated intelligent power module that integrates an inverter, drive and protection IC. It features a 5th‑generation Full‑Gate CSTBT chip, over‑temperature protection, short‑circuit and under‑voltage safeguards, and is UL recognized for general‑purpose inverter and servo drive applications.
The manual provides detailed electrical and mechanical ratings, recommended operating conditions, testing precautions, PCB layout advice, and performance curves to aid designers in implementing the module safely and efficiently.
| Junction Temperature Range | -20 ~ +150 °C |
|---|---|
| Protected Supply Voltage (VD) | 13.5 ~ 16.5 V |
| Mounting Screw Size | M5 |
| Weight | 380 g |
It includes over‑temperature protection, short‑circuit protection, under‑voltage protection, and fault‑output signals for each arm.
