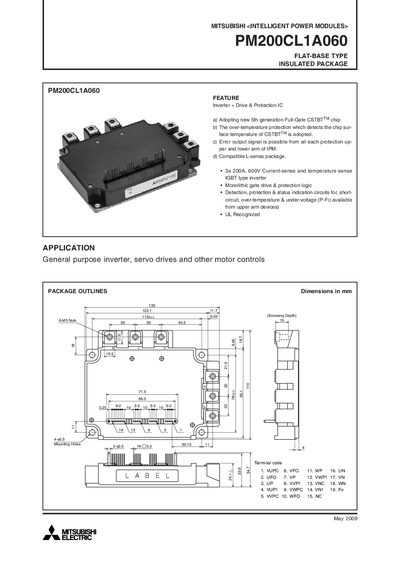

PM200CL1A060 is an IGBT type Intelligent Power Module of 600V, 200A, produced by Mitsubishi. It adopts new 5th generation Full-Gate CSTBTTM chip, and has short circuit, over-temperature and under-voltage detection, protection and status indication circuits. UL recognized.
The PM200CL1A060 is a flat‑base, insulated intelligent power module that integrates an inverter, drive, and protection IC using a 5th‑generation full‑gate CSTBT chip. It offers over‑temperature, short‑circuit, under‑voltage and fault‑output protection, and is suitable for general‑purpose inverter, servo drive and motor control applications.
The document lists maximum electrical ratings, mechanical dimensions, thermal resistance values, recommended supply voltages, and detailed performance curves. It also includes testing precautions, recommended PCB layout guidelines, and transient thermal impedance data to aid designers in safe and reliable implementation.
| Junction Temperature Range (Tj) | -20 °C to +150 °C |
|---|---|
| Mounting Screw Size | M5 (torque 2.5‑3.5 N·m) |
