PM50CL1A060 is a three-phase 50A, 600V smart power module, which adopts 5th generation full-gate CSTBTTM chip, has chip surface temperature detection over-temperature protection, upper/lower arm can detect overcurrent, can detect short circuit, over temperature, under voltage, has UL certification, and is used in general inverters, servo drives, and other motor control fields.

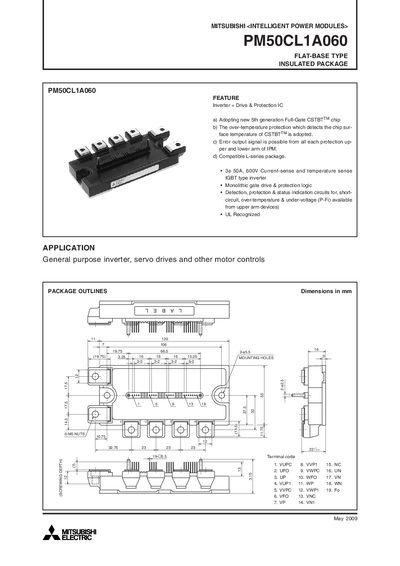

The Mitsubishi Electric PM50CL1A060 Intelligent Power Module (IPM) is a flat‑base, insulated package that integrates an IGBT inverter, drive and protection IC. It features a 5th‑generation Full‑Gate CSTBT™ chip, over‑temperature protection, and error output signals for both upper and lower arms. The module is suitable for general‑purpose inverters, servo drives and other motor‑control applications.
The manual provides detailed electrical and mechanical ratings, recommended operating conditions, testing precautions, performance curves, and thermal impedance data. It also includes wiring diagrams, pin assignments, and guidelines for PCB layout and component selection to ensure reliable operation.
| Junction Temperature Range | -20 °C to +150 °C |
|---|---|
| Supply Voltage (VD) | 13.5 V – 16.5 V |
| Mounting Screw Size | M5, 2.5 mm – 3.5 mm |
| Weight | 380 g |
The recommended supply voltage for the protection circuit is 13.5 V to 16.5 V.
Use M5 screws with a torque range of 2.5 mm to 3.5 mm.
