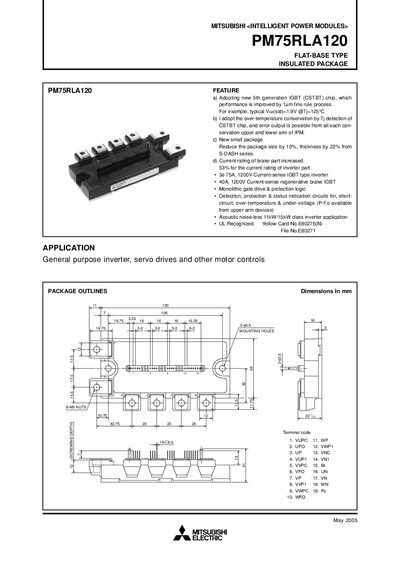

The PM75RLA120 is a new IGBT module produced by Mitsubishi. Its features include the use of the fifth-generation CSTBT chip, improved performance, miniaturization, and low noise.
This manual provides detailed information on the Mitsubishi PM75RLA120 Intelligent Power Module, including its features, package dimensions, internal block diagram, and maximum electrical ratings. It also covers mechanical characteristics, recommended mounting conditions, and safety precautions for testing.
Performance curves, transient thermal data, and application examples are included to help engineers design and verify inverter and brake circuits using the module.
| Collector Current (Inverter) | 75 A |
|---|---|
| Collector Current (Brake) | 40 A |
| Junction Temperature Range | -20 °C to +150 °C |
| Supply Voltage (Protected) | 13.5 V to 16.5 V |
| Mounting Torque (Main Terminal Screw) | 3.0 Nm to 3.5 Nm |
| Weight | 380 g |
The inverter part can handle up to 75 A of collector current.
The recommended torque is between 3.0 Nm and 3.5 Nm.
The module operates from –20 °C up to +150 °C junction temperature.
The protected supply voltage range is 13.5 V to 16.5 V.
