The PS21563-P is a low-loss 600V/10A 5th generation inverter bridge for three phase DC-to-AC power conversion. It is suitable for AC100V~200V inverter drive for small power motor control.
The Mitsubishi PS21563-P is a dual‑in‑line package intelligent power module designed for three‑phase DC‑to‑AC inverter applications. It integrates drive, protection, and system control functions for both upper‑leg and lower‑leg IGBTs, supporting 600 V/10 A low‑loss inverter bridges.

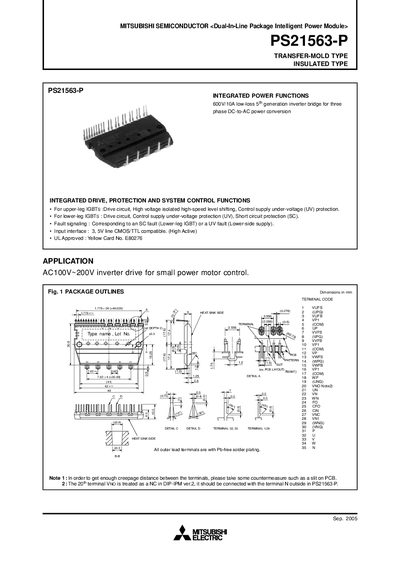

The datasheet provides detailed electrical ratings, thermal characteristics, mechanical dimensions, recommended operating conditions, and timing diagrams for short‑circuit and under‑voltage protection functions. Wiring recommendations and interface circuit guidelines are also included to ensure reliable integration into inverter systems.
| Supply voltage (Veco) | 450 V |
|---|---|
| Collector‑emitter voltage (VCES) | 600 V |
| Continuous collector current | 10 A |
| Isolation voltage | 2500 V |
| Weight | 20 g |
The module can handle a continuous collector current of 10 A per IGBT.
A mounting torque of 0.78 Nm is recommended (range 0.59 – 0.98 Nm).
All pins connected to the heat‑sink plate are isolated up to 2500 V.
