600V/5A low-loss 5th generation IGBT inverter bridge for three phase DC-to-AC power conversion

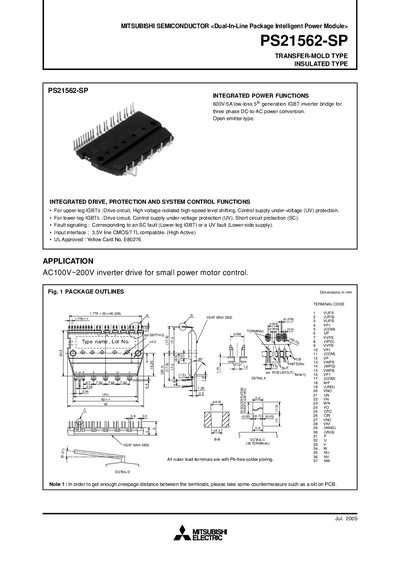

The PS21562-SP is a dual‑in‑line package (DIP) intelligent power module that integrates drive, protection, and system control functions for three‑phase DC‑to‑AC conversion. It is designed for AC100‑200 V inverter drives for small motor control and features an open‑emitter IGBT topology.
The document lists electrical and mechanical ratings, recommended operating conditions, wiring recommendations, and timing charts for the module's protective functions, helping designers implement the part safely and efficiently.
| Supply voltage (Veco) | 450 V |
|---|---|
| Surge supply voltage | 500 V |
| Collector‑emitter voltage (VCES) | 600 V |
| Continuous collector current | 5 A |
| Power dissipation per chip | 16.7 W |
| Isolation voltage (pins to heat‑sink) | 2500 V |
| Junction‑to‑case thermal resistance | 6.0 °C |
| Weight | 20 g |
| Mounting torque (recommended) | 0.78 N·m |
The VCES rating is 600 V.
All pins are isolated from the heat‑sink up to 2500 V.
