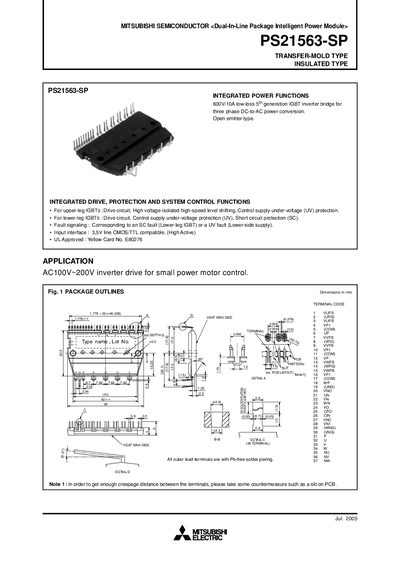

The PS21563-SP is a 600V/10A low-loss 5th generation IGBT inverter bridge for three phase DC-to-AC power conversion. Open emitter type. Applications include AC100V~200V inverter drive for small power motor control.
The Mitsubishi PS21563-SP is a dual‑in‑line package (DIP) intelligent power module that integrates drive, protection and system control functions for three‑phase DC‑to‑AC inverter applications. It provides 600 V/10 A low‑loss IGBT inverter bridges with built‑in fault detection, under‑voltage protection and short‑circuit protection.
The manual details maximum ratings, electrical and thermal characteristics, mechanical dimensions, recommended mounting torque, wiring guidelines, timing charts for protective functions, and typical application circuits. It also includes recommended CPU I/O interface circuitry and notes on component placement to ensure reliable operation.
| Supply voltage (Veco) | 450 V |
|---|---|
| Collector‑emitter voltage (VCES) | 600 V |
| Continuous collector current per IGBT | 10 A |
| Power dissipation per chip | 20 W |
| Isolation voltage (all pins to heat‑sink) | 2500 V |
| Weight | 20 g |
| Mounting torque (M3 screw) | 0.78 N·m (recommended) |
All connected pins must withstand an isolation voltage of 2500 V to the heat‑sink plate.
The recommended mounting torque for the M3 screw is 0.78 N·m (range 0.59–0.98 N·m).
