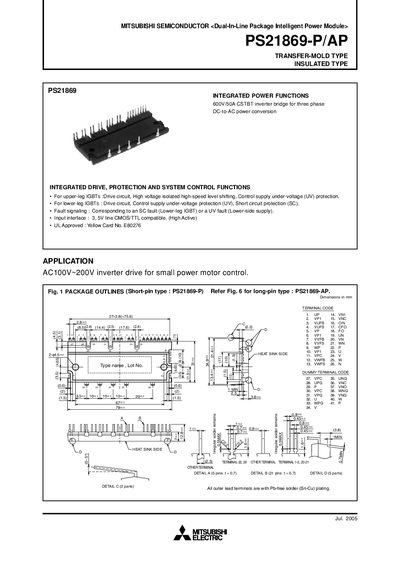

The PS21869 is a 600V/50A CSTBT inverter bridge for three phase DC-to-AC power conversion. It is suitable for AC100V~200V inverter drive for small power motor control.
This manual provides detailed information on the Mitsubishi PS21869-P/AP dual‑in‑line package intelligent power module. It includes maximum ratings, electrical and thermal characteristics, mechanical data, recommended operating conditions, and protection functions such as short‑circuit and under‑voltage protection.
The document also describes wiring guidelines, interface circuits, and a typical application circuit. Engineers can use the specifications and diagrams to integrate the module into AC inverter drives for small‑power motor control.
| Supply voltage (P‑N) | 450 V (typical) |
|---|---|
| Collector‑emitter voltage (VCES) | 600 V |
The inverter part is rated for a supply voltage of 450 V between P‑N (typical) and can withstand up to 500 V surge.
