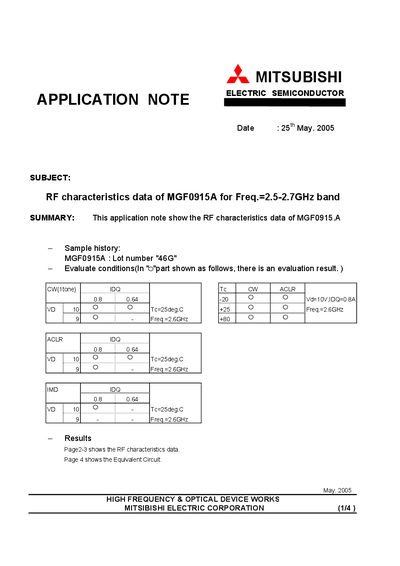

This document shows the RF characteristics data of MGF0915.A, including evaluation conditions and results, as well as the equivalent circuit diagram.
The document presents measured RF performance of the MGF0915A semiconductor device, covering the 2.5‑2.7 GHz frequency range. It includes sample history, evaluation conditions, and detailed test results.
Pages 2‑3 contain the RF test data, while page 4 shows the equivalent circuit and test‑fixture specifications such as board material, component values, and layout details.
| Frequency band | 2.5‑2.7 GHz |
|---|---|
| IDQ (quiescent current) | 0.8 A |
| Board material | FR4, thickness 0.8 mm |
| Dielectric constant | 4.4 |
The RF characteristics are measured for the 2.5‑2.7 GHz band.
The test fixture operates at 2.6 GHz.
The board is FR4 with a thickness of 0.8 mm.
Capacitors C1‑C4 are 20 nF and C5‑C8 are 1000 pF.
