CM450DX-24S is a Mitsubishi IGBT module with a maximum voltage of 1200V, a maximum current of 450A, and a maximum operating temperature of 175°C.

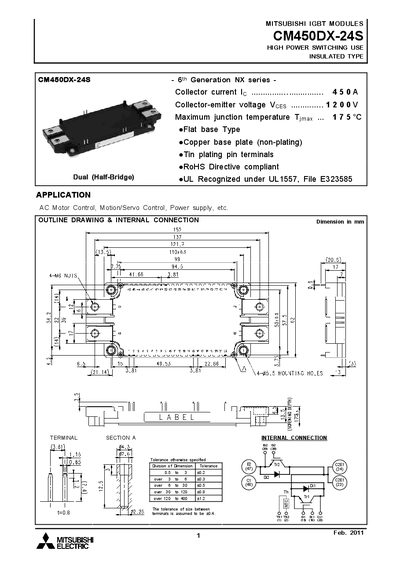

The CM450DX-24S is a high‑power insulated IGBT module designed for AC motor control, motion/servo control, power supplies and similar applications. It features a flat copper base plate, tin‑plated pin terminals and complies with the RoHS Directive and UL1557.
The document lists absolute maximum ratings, detailed electrical characteristics, thermal resistance data, mechanical dimensions, recommended operating conditions, test circuits, performance curves and safety notices, enabling engineers to evaluate the device for their designs.
| Maximum junction temperature (Tjmax) | 175 °C |
|---|---|
| Weight | 350 g |
