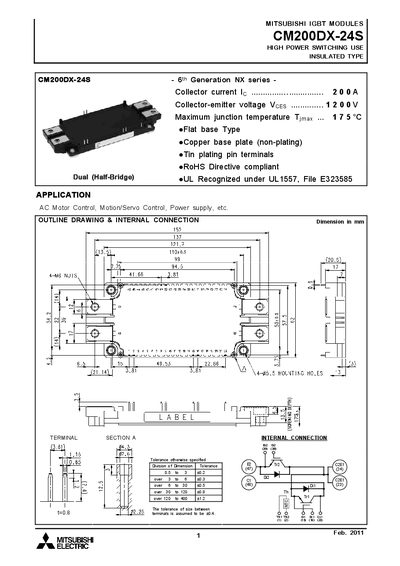

This document describes the features and characteristics of the MITSUBISHI IGBT module CM200DX-24S, which is suitable for high power switching applications.
The CM200DX-24S is a high‑power insulated IGBT module designed for inverter applications such as AC motor control and power supplies. It features a collector current rating of 200 A and a collector‑emitter voltage rating of 1200 V.
The document provides absolute maximum ratings, electrical and thermal characteristics, mechanical dimensions, recommended operating conditions, test circuits, and performance curves, along with safety and handling notes.
| Collector‑emitter voltage (Vcesg) | 1200 V |
|---|---|
| Maximum junction temperature (Tjmax) | 175 °C |
| Maximum case temperature | 125 °C |
| Operating junction temperature range | -40 °C to +150 °C |
| Weight | 350 g |
It is rated for a collector‑emitter voltage of 1200 V.
The maximum junction temperature is 175 °C.
The module is specified to operate between –40 °C and +150 °C.
