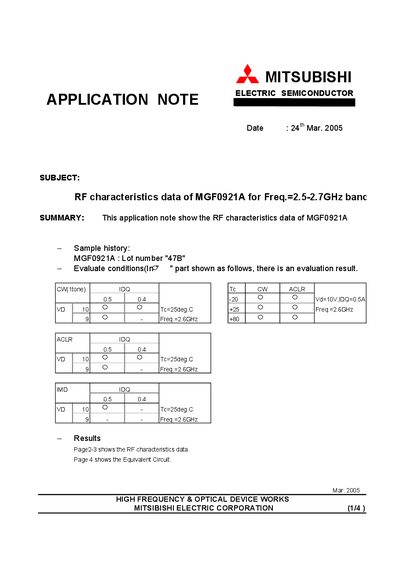

This is an application note that shows the RF characteristics data of MGF0921A, including output power, input voltage, input current, etc.
The document presents measured RF performance of the MGF0921A device in the 2.5‑2.7 GHz frequency range. Test conditions such as supply voltage, bias current and temperature are listed, and the results are shown in tabular form.
Pages 2‑3 contain detailed RF test data, while page 4 shows the equivalent circuit model with component values and board material specifications.
| Lot number | 47B |
|---|---|
| Bias current (IDQ) | 0.5 A |
| Frequency band | 2.5‑2.7 GHz |
| C1‑C4 | 20 pF |
| C5‑C7‑C8 | 1000 pF |
| C9‑C13‑C14 | 0.5 pF |
| C10‑C11 | 1 pF |
| C12 | 2 pF |
| C6 | 4.7 µF |
| L1‑L2 | 12 nH |
| R1 | 51 Ω |
| R2 | 200 Ω |
| Board material | FR4, thickness 0.8 mm, dielectric constant 4.4 |
The test data cover the 2.5‑2.7 GHz band.
Measurements were performed with a supply voltage of 10 V and a bias current of 0.5 A.
The sample used has lot number 47B.
