CM100TX-24S is a Mitsubishi electric IGBT module with a rated DC current of 100A, a rated DC voltage of 1200V and a maximum junction temperature of 175°C. The module uses a non-plated copper base plate and tin-plated terminals, and complies with RoHS regulations. It is suitable for AC motor control, motion/servo control, power supply and other applications.

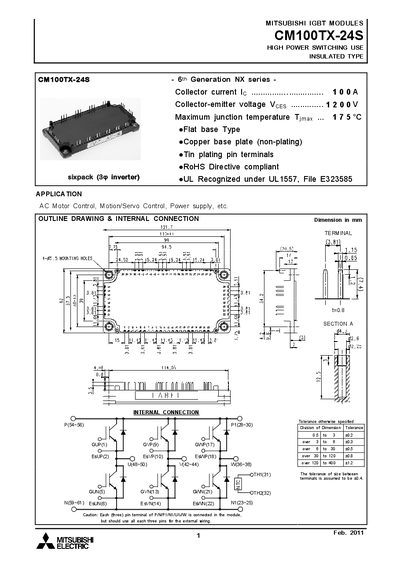

This manual describes the CM100TX-24S insulated‑type IGBT module, including absolute maximum ratings, electrical and thermal characteristics, mechanical dimensions, and recommended operating conditions. It also contains outline drawings, internal connection details, test circuit diagrams, and performance curves for both inverter and free‑wheeling diode sections.
Safety information and usage notes are provided, emphasizing proper circuit design, mounting practices, and restrictions on use in life‑critical systems such as medical or aerospace equipment.
| Maximum junction temperature | 175 °C |
|---|---|
| Weight | 300 g |
| External gate resistance per switch | 6.2‑62 Ω |
