CM150DX-24S is an IGBT module from MITSUBISHI. Its maximum collector current is 150A, maximum collector-emitter voltage is 1200V and maximum working temperature is 175℃.

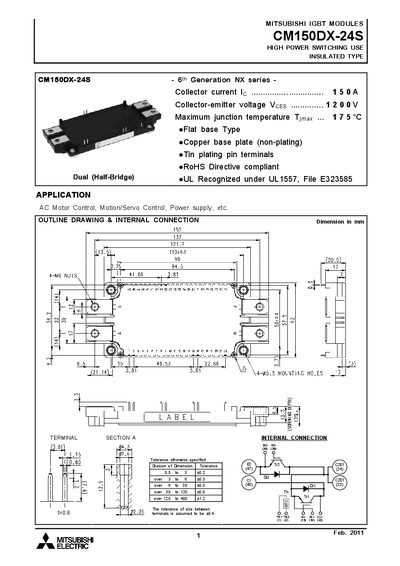

The CM150DX-24S is an insulated IGBT module designed for high‑power switching applications such as AC motor control, motion/servo control, and power supplies. The document provides absolute maximum ratings, electrical and thermal characteristics, mechanical dimensions, and recommended operating conditions.
Key data include a collector current rating of 150 A, a collector‑emitter voltage rating of 1200 V, and a maximum junction temperature of 175 °C. Mechanical details such as a copper base plate, tin‑plated pin terminals, mounting torque of 7 N·m, and a weight of 350 g are also listed, along with performance curves and test waveforms.
| Collector current (I_C) | 150 A |
|---|---|
| Collector‑emitter voltage (V_CE) | 1200 V |
| Maximum junction temperature (Tjmax) | 175 °C |
| Base plate material | Copper (non‑plating) |
| Pin terminal finish | Tin plating |
| RoHS compliance | Yes |
| Mounting torque | 7 N·m |
| Weight | 350 g |
| Thermal resistance (junction‑to‑case, ISBT) | 0.13 K·W⁻¹ |
The module is rated for a collector current of 150 A.
It can withstand up to 1200 V collector‑emitter voltage.
A mounting torque of 7 N·m is recommended.
Yes, the module complies with the RoHS Directive.
