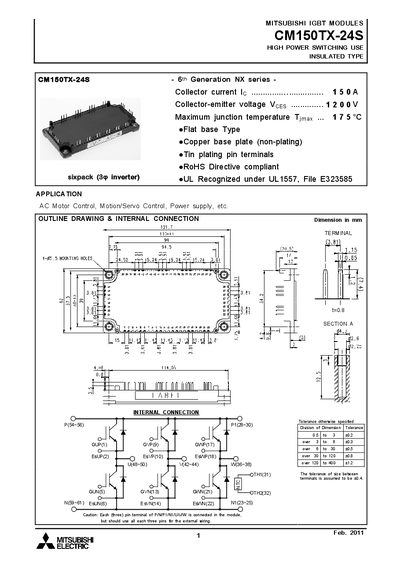

This document describes the features and characteristics of the MITSUBISHI IGBT module CM150TX-24S. The module is designed for high power switching applications and features an insulated design, flat base type, copper base plate, tin plated pin terminals, etc. The module is RoHS Directive compliant and UL1557 recognized.
The CM150TX-24S is a high‑power, insulated‑type IGBT module from Mitsubishi Electric, intended for AC motor control, motion/servo control, power supplies and similar applications. The document provides detailed electrical, mechanical and thermal data, as well as recommended operating conditions and safety guidelines.
Key specifications include a collector current of 150 A, collector‑emitter voltage of 1200 V, maximum junction temperature of 175 °C, and isolation voltage of 2500 V. Performance curves, test circuit diagrams, capacitance characteristics and mounting instructions are also included to aid designers in integrating the module safely and efficiently.
| Maximum junction temperature (Tjmax) | 175 °C |
|---|---|
| DC supply voltage (Vdc) | 600‑850 V |
