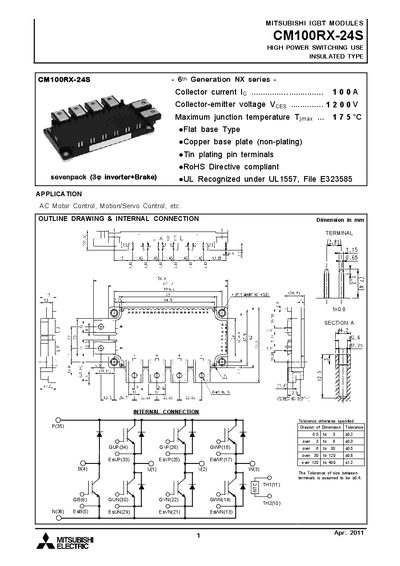

CM100RX-24S is a Mitsubishi IGBT module with a maximum collector current of 100A and a collector-emitter voltage of 1200V. The maximum junction temperature is 175℃.
The CM100RX-24S is a high‑power insulated IGBT module intended for AC motor control, motion/servo control and similar applications. It offers a collector current of 100 A and a collector‑emitter voltage rating of 1200 V.
The document lists absolute maximum ratings, detailed electrical and thermal characteristics, mechanical dimensions, recommended operating conditions, test circuits, performance curves and safety notices for engineers designing with this module.
| Maximum junction temperature (Tjmax) | 175 °C |
|---|---|
| Junction‑to‑case thermal resistance (Inverter IGBT) | 0.20 K/W |
| Weight | 370 g |
| Mounting torque | 7 N‑m |
| Gate‑emitter voltage (short‑circuited) | +20 V |
The maximum junction temperature (Tjmax) is 175 °C.
A mounting torque of 7 N‑m is recommended.
