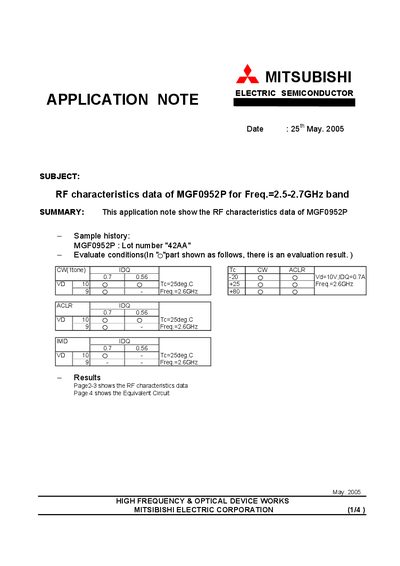

This document shows the RF characteristics data of MGF0952P
The document presents measured RF performance of the MGF0952P semiconductor for frequencies between 2.5 GHz and 2.7 GHz. Test conditions such as a drain voltage of 10 V and a quiescent drain current of 0.7 A are specified, and sample history (Lot number "42AA") is listed.
Pages 2‑3 contain detailed RF test data, including output power versus input power and ACLR results. Page 4 provides the equivalent circuit schematic and component values for the device, along with board material specifications.
| Frequency band | 2.5‑2.7 GHz |
|---|---|
| Drain voltage (VD) | 10 V |
| Quiescent drain current (IDQ) | 0.7 A |
| Board material | FR4, thickness 0.8 mm |
The RF test data cover the 2.5 GHz to 2.7 GHz band.
The tests were performed with a drain voltage of 10 V and a quiescent drain current of 0.7 A.
The equivalent circuit is shown on page 4 of the document.
The sample used has the lot number "42AA".
