CM75TX-24S is a 75A high power IGBT module with a maximum junction temperature of 175 degrees, suitable for AC motor control, motion control, power supply and other fields.
The CM75TX-24S is a high‑power insulated IGBT module designed for inverter and motor‑control applications. It provides a collector‑emitter voltage rating of 1200 V and a continuous collector current of 75 A, with a maximum junction temperature of 175 °C.

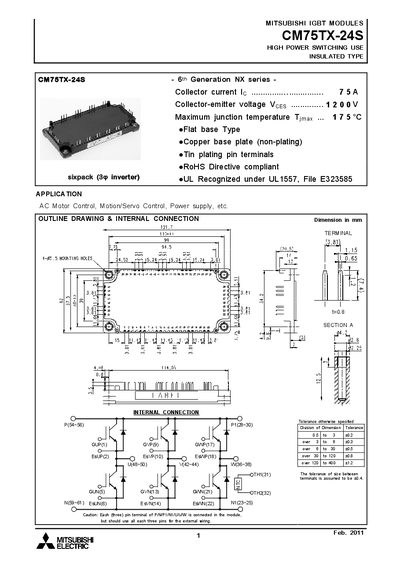

The document lists absolute maximum ratings, electrical and thermal characteristics, mechanical dimensions, recommended operating conditions, and detailed test circuits with performance curves. Safety and handling notes from Mitsubishi Electric are also included.
| Maximum junction temperature (Tjmax) | 175 °C |
|---|---|
| Thermal resistance junction‑to‑case (Rthjc) | 0.25 K·W |
| Weight | 300 g |
The recommended gate‑drive voltage is between 13.5 V and 16.5 V.
The maximum junction temperature (Tjmax) is 175 °C.
