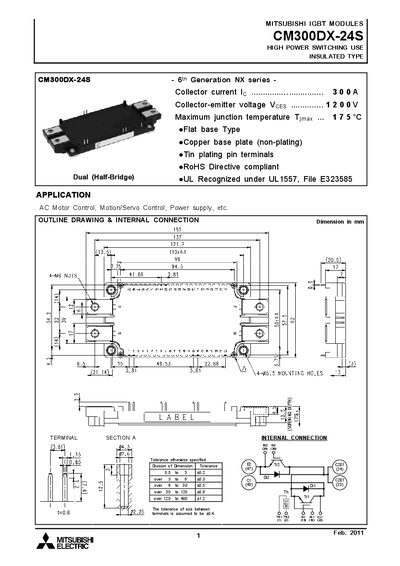

This document describes the features and characteristics of Mitsubishi IGBT module CM300DX-24S, including high power switching use, insulated type, etc.
This document details the high‑power switching IGBT module CM300DX‑24S, an insulated‑type device intended for AC motor control, motion/servo control, power supplies and similar applications. It lists absolute maximum ratings, electrical and thermal characteristics, mechanical dimensions, and recommended operating conditions.
Performance curves, test circuit diagrams, switching energy data, capacitance and gate‑charge characteristics, as well as safety notices and export‑control information are also included to aid designers in integrating the module safely and effectively.
| Collector‑emitter voltage (V_CE) | 1200 V |
|---|---|
| Maximum junction temperature (T_jmax) | 175 °C |
| Weight | 350 g |
| Mounting torque | 7 N·m |
| Thermal resistance, junction‑to‑case (IGBT) | 0.066 K·W |
The module can withstand up to 1200 V collector‑emitter voltage.
The recommended DC supply voltage across C1‑E2 is 600 V to 850 V.
The maximum junction temperature is 175 °C.
