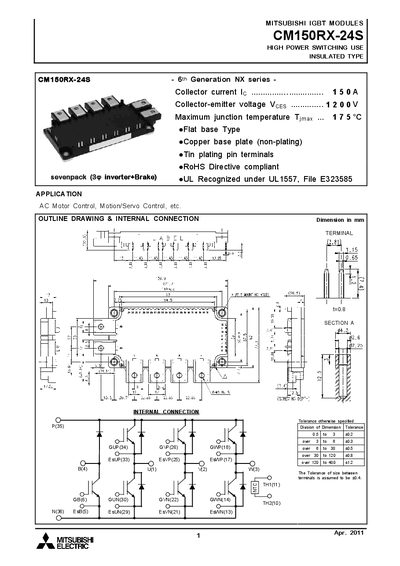

CM150RX-24S is a high power switching use insulated IGBT module, its maximum collector current is 150A, maximum collector-emitter voltage is 1200V, maximum working temperature is 175℃.
The CM150RX-24S is a high‑power, insulated IGBT module intended for inverter and brake applications such as AC motor control and motion/servo control. It offers a collector current of 150 A and a collector‑emitter voltage rating of 1200 V.
The document lists detailed electrical ratings, thermal resistance values, mechanical dimensions, recommended mounting torque, and safety precautions. It also includes performance curves, switching energy data, and test circuit descriptions to aid designers in integrating the module safely and efficiently.
| Maximum junction temperature | 175 °C |
|---|---|
| Thermal resistance (junction‑to‑case, Inverter IGBT) | 0.13 K·W |
| Weight | 370 g |
| Mounting torque | 7 N·m |
| Supply voltage range | 600 V – 850 V |
A mounting torque of 7 N·m is recommended.
Designs should prioritize safety by using non‑flammable materials, providing auxiliary circuits, and preventing malfunctions.
